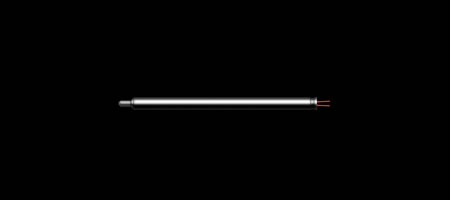

| Marshall Part No. |
Tip Length |
| MTK8-6 |
8" |
| MTK12-6 |
12" |
| MTK15-6 |
15" |
| MTK18-6 |
18" |
| MTK20-6 |
20" |
| MTK24-6 |
24" |
| MTK30-6 |
30" |
| MTK36-6 |
36" |
|
|
 |
| Marshall Part No. |
Description |
SCH - 1
SCH - 2
SCH - 3 |
Cast iron base with high temperature aluminum enamel finish. For single or dual element terminal blocks. |
|
|
 |
| Marshall Part No. |
Description |

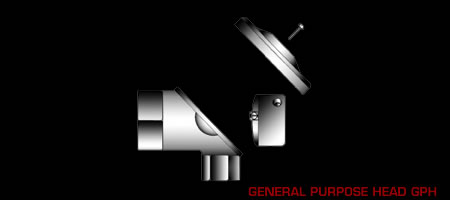

GPH - 1
GPH - 2
GPH - 3 |
Cast iron base with gasketed pressed steel cover. For single element terminal block only. |
|
|
 |
| Marshall Part No. |
Description |

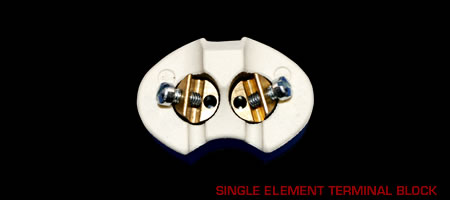

| MTB 128 |
For single element terminal block only. Single element terminal block MTB 128 accommodates #12 B&S ga. or smaller extension wire, #8 B&S ga. or smaller thermocouple wire. |
|
|
 |
| Marshall Part No. |
Description |

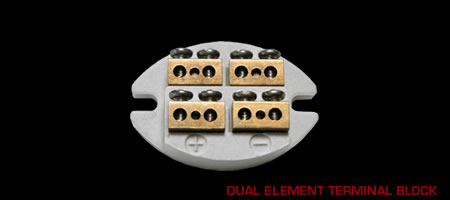

| MTB 1412 |
Single element block MTB 1212 or dual element block MTB 1412 accommodates #12 B&S ga. or smaller extension wire, #14 B&S ga. or smaller thermocouple wire. |
|
|
 |
| Marshall Part No. |
Tip Length |
| 1/2 x 1/2" |
CAT FF-S-1212-P* |
| 3/4 x 3/4" |
CAT FF-S-3434-P* |
| 1/2 x 3/4 " |
CAT FF-S-1234-P* |
| |
| 1/2 x 1/2" |
CAT FF-S-1212-T* |
| 3/4 x 3/4" |
CAT FF-S-3434-T* |
| 1/2 x 3/4" |
CAT FF-S-1234-T* |
| |
| 1/2 x 1/2" |
CAT FF-S-1212-B* |
| 3/4 x 3/4" |
CAT FF-S-3434-B* |
| 1/2 x 3/4" |
CAT FF-S-1234-B* |
| *P = Plain / T = Tapped with set screw / B = Brazed on |
|
|
