Fast & Accurate.

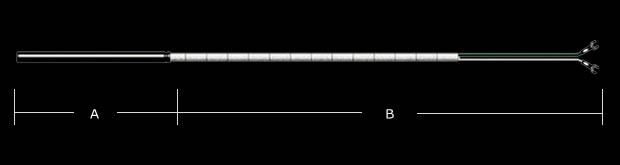

Tip Length "A"	Wire Length "B"	L.H. Marshall Part N.	For Use in Lance Length	Curved Lance (90 bend) Parwt No.	Straight Lance Part Number
8"	27 5/8" 702mm	501-T-8-31-R-RY	31" / 788mm	501-PGX-31	101-PGX-31
8"	40 5/8" 1032mm	501-T-8-43-R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
8"	40 5/8" 1337mm	501-T-8-55-R-RY	43" / 1397mm	501-PGX-55	101-PGX-55
8"	40 5/8" 1768mm	501-T-8-7-R-RY	43" / 1829mm	501-PGX-72	101-PGX-72

12"	27 5/8" / 702mm	701-T-12-31-R-RY	31" / 788mm	501-PGX-31	101-PGX-31
12"	40 5/8" 1032mm	701-T-12-43-R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
12"	52 5/8" 1337mm	701-T-12-55-R-RY	55" / 1397mm	501-PGX-55	101-PGX-55
12"	69 5/8" 1768mm	701-T-12-72-R-RY	72" / 1829mm	501-PGX-72	101-PGX-72

15"	27 5/8" / 702mm	701-T-15-31-R-RY	31" / 788mm	501-PGX-31	101-PGX-31
15"	40 5/8" 1032mm	701-T-15-43-R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
15"	52 5/8" 1337mm	701-T-15-5-R- RY	55" / 1397mm	501-PGX-55	101-PGX-55
15"	69 5/8" 1768mm	701-T-15-72-R-RY	72" / 1829mm	501-PGX-72	101-PGX-72

20"	27 5/8" / 702mm	701-T-20-31-R- RY	31" / 788mm	501-PGX-31	101-PGX-31
20"	40 5/8" 1032mm	701-T-20-43-R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
20"	52 5/8" 1337mm	701-T-20-55-R-RY	55" / 1397mm	501-PGX-55	101-PGX-55
20"	69 5/8" 1768mm	701-T-20-72-R-RY	72" / 1829mm	501-PGX-72	101-PGX-72

24"	27 5/8" / 702mm	701-T-24-31-R-RY	31" / 788mm	501-PGX-31	101-PGX-31
24"	40 5/8" 1032mm	701-T-24-43-R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
24"	52 5/8" 1337mm	701-T-24-55-R-RY	55" / 1397mm	501-PGX-55	101-PGX-55
24"	52 5/8" 1337mm	701-T-24-55 -R-RY	55" / 1397mm	501-PGX-55	101-PGX-55

30"	27 5/8" / 702mm	701-T-30-31-R-RY	31" / 788mm	501-PGX-31	101-PGX-31
30"	40 5/8" 1032mm	701-T-30-43 -R-RY	43" / 1092mm	501-PGX-43	101-PGX-43
30"	52 5/8" 1337mm	701-T-30-55-R-RY	55" / 1397mm	501-PGX-55	101-PGX-55
30"	69 5/8" 1768mm	701-T-30-72-R-RY	72" / 1829mm	501-PGX-72	101-PGX-72

Tip Length "A"	Wire Length "B"	L.H. Marshall Part No.	For Use in Lance Length	Curved Lance (90 bend) Part No.	Straight Lance Part Number
8"	27 5/8" 702mm	501-T-8-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
8"	40 5/8" 1032mm	501-T-8-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
8"	40 5/8" 1337mm	501-T-8-55-R-GW	43" / 1397mm	501-PGX-55	101-PGX-55
8"	40 5/8" 1768mm	501-T-8-72-R-GW	43" / 1829mm	501-PGX-72	101-PGX-72

12"	27 5/8" / 702mm	701-T-12-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
12"	40 5/8" 1032mm	701-T-12-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
12"	52 5/8" 1337mm	701-T-12-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55
12"	69 5/8" 1768mm	701-T-12-72-R-GW	72" / 1829mm	501-PGX-72	101-PGX-72

15"	27 5/8" / 702mm	701-T-15-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
15"	40 5/8" 1032mm	701-T-15-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
15"	52 5/8" 1337mm	701-T-15-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55
15"	69 5/8" 1768mm	701-T-15-72-R-GW	72" / 1829mm	501-PGX-72	101-PGX-72

20"	27 5/8" / 702mm	701-T-20-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
20"	40 5/8" 1032mm	701-T-20-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
20"	52 5/8" 1337mm	701-T-20-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55
20"	69 5/8" 1768mm	701-T-20-72-R-GW	72" / 1829mm	501-PGX-72	101-PGX-72

24"	27 5/8" / 702mm	701-T-24-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
24"	40 5/8" 1032mm	701-T-24-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
24"	52 5/8" 1337mm	701-T-24-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55
24"	69 5/8" 1768mm	701-T-24-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55

30"	27 5/8" / 702mm	701-T-30-31-R-GW	31" / 788mm	501-PGX-31	101-PGX-31
30"	40 5/8" 1032mm	701-T-30-43-R-GW	43" / 1092mm	501-PGX-43	101-PGX-43
30"	52 5/8" 1337mm	701-T-30-55-R-GW	55" / 1397mm	501-PGX-55	101-PGX-55
30"	69 5/8" 1768mm	701-T-30-72-R-GW	72" / 1829mm	501-PGX-72	101-PGX-72
